QC5 5 Meter Fully Anechoic Chamber

QC5

5 Meter

Fully Anechoic

EMC Chamber

QUANTUM CLASS

BUILD QUOTE

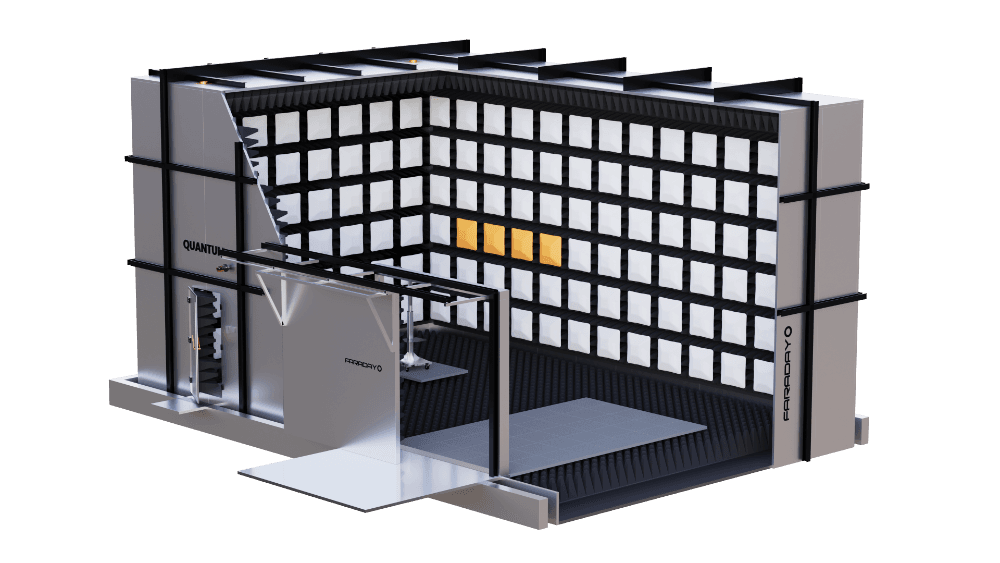

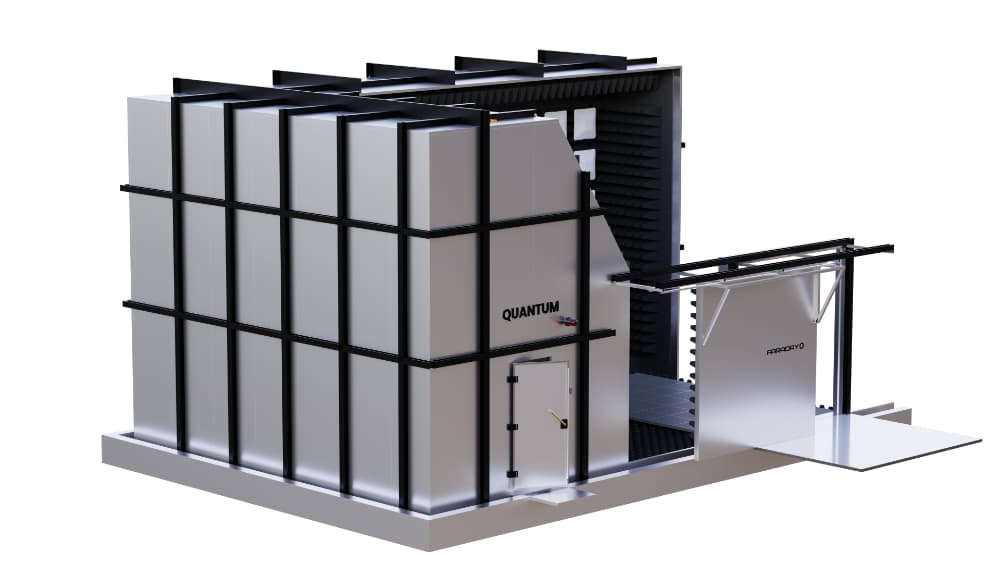

QC5 Fully Anechoic Chamber

The QC5 Chamber provides a controlled environment, free from electromagnetic interference (EMI) and ambient RF signals entering or exiting the room. Fully compliant for emissions and immunity testing, the QC5 allows for a 5-meter testing distance. QUANTUM chambers are built with anechoic foam on the walls, ceiling, and floor to ensure the best acoustical damping. All of our chambers are designed with a modular construction system and equipped with acoustic protection, LED ambient lighting, and EMC protection. We build to standard specifications or custom design a chamber to meet your requirements.Quote

View Data Sheet

Download Data Sheet

Specifications

• Magnetic: 55 dB @ 10kHz; 95dB @ 200kHz; 100 dB @ 1 MHz.

• Electric: 100 dB from 15 kHz to 100 MHz

• Planewave: 100 dB from 100 MHz to 1 GHz

• Microwave: 100 dB at 10 GHz

• Full Compliant Emission: CISPR 16-1-4

• Full Compliant Immunity: IEC/EN 61000-4-3

• Dimensions: 11.5 m x 7.5 m x 5.
